__________________ 500awhp 440awtq uncorrected  EFR8374 ms6, no meth, 50/50 e85, and IDCs in the 90's @ 500+ awhp, with room to grow... fifth port winning. Count down to head lift.... 3.... 2.... 30r ms3 dd on deck, has fuel... needs top mount turbo lovin' next... Check out the hair Salon: www.permtuning.com |
|   |
|
11-22-2011, 05:34 PM
| #42 | |
| jbr makes fall-a-parts.   Join Date: Jan 2011 Location: Cambridge Ontario Canada
Posts: 13,163
(View Stats)
iTrader: (11)
Rep Power: 13536 Thanks: 25,744
Thanked 26,388 Times in 7,871 Posts
Groans: 793
Groaned at 496 Times in 321 Posts
| Not Ranked : 0 score I know you see what I'm saying. It's the tensioners job to take up any slack, but if it can't, it would be the same for pinned and non pinned cams. It's not like our non pinned ones are floating/self adjusting. Stretching a chain just plain sucks for all involved. I need to get the dcr and do mine. I really don't want to though.
__________________   Inb4 85% silicone core. It's better than aluminum. What's you buddy's ex wife trap? I <3 SP63, but that port job though... "The coolant must be evaporating." Bye Felicia "Exclusivity" - CP-enis Demodded. The Seals |
|
| |
| The Following User Says Thank You to Tokay444 For This Useful Post: | djuosnteisn (11-22-2011) |
|
11-22-2011, 06:18 PM
| #43 | |
  Join Date: Jan 2011 Location: vancouver,WA
Posts: 554
(View Stats)
iTrader: (0)
Rep Power: 0 Thanks: 184
Thanked 663 Times in 252 Posts
Groans: 13
Groaned at 24 Times in 5 Posts
| Not Ranked : 0 score the ARP crank bolt is not ttyl, you can reuse and retorque the shit out of it, and wtf the ms3 has 2 separate sprockets, reg mzr has a one piece dual sprocket....yeah most definitely shitty engineering |
|
| |
| The Following User Says Thank You to Tabasco69 For This Useful Post: | djuosnteisn (11-23-2011) |
|
11-22-2011, 06:21 PM
| #44 | |
| jbr makes fall-a-parts. Join Date: Jan 2011 Location: Cambridge Ontario Canada
Posts: 13,163
(View Stats)
iTrader: (11)
Rep Power: 13536 Thanks: 25,744
Thanked 26,388 Times in 7,871 Posts
Groans: 793
Groaned at 496 Times in 321 Posts
| Not Ranked : 0 score But with the arp bolt you follow the same TTY procedure?
__________________ Inb4 85% silicone core. It's better than aluminum. What's you buddy's ex wife trap? I <3 SP63, but that port job though... "The coolant must be evaporating." Bye Felicia "Exclusivity" - CP-enis Demodded. The Seals |
|
| |
|
11-22-2011, 06:31 PM
| #45 | |
| Join Date: Jan 2011 Location: vancouver,WA
Posts: 554
(View Stats)
iTrader: (0)
Rep Power: 0 Thanks: 184
Thanked 663 Times in 252 Posts
Groans: 13
Groaned at 24 Times in 5 Posts
| Not Ranked : 0 score Yes you follow the same torque proceedures as stated in the factory manual, but do not be alarmed when you can not get the full 90 degrees beyond the inital ftlbs, the arp crank bolt is a stout mother fucker compare to the oem ttyl crank fastener, the most I was able to get was 40 degrees Guess what....remember when I said cosworth stopped making keyed sprockets, well I guess they started making them again although they are charging twice as much as they used to, just bought one, I'll use it on my second engine I' am building. Last edited by Tabasco69; 11-22-2011 at 06:44 PM. |
|
| |
| The Following 3 Users Say Thank You to Tabasco69 For This Useful Post: |
|
11-22-2011, 07:38 PM
| #46 | |
 Join Date: Apr 2011
Posts: 339
(View Stats)
iTrader: (0)
Rep Power: 0 Thanks: 5
Thanked 212 Times in 96 Posts
Groans: 0
Groaned at 15 Times in 7 Posts
| Not Ranked : 0 score The amount of force required for the ARP bolt to reach that 90 should only be done with a flywheel lock and the engine on the ground not a stand. otherwise do as tobasco did and do the 40 degrees. IT is a very stout bolt and can and will break the SST pin or an engine stand if you try and force it to the full 90degrees without the above mentioned procedure. For those doing the keyway I just torque mine down to 155ft/lbs and call it a day. Had a nice talk with a ARP tech about this and with a keyed crankshaft there is no need for all that torque anymore. I haven't had a problem with it yet and have retorqued it atleast 6 times sense the initial use. Disclaimer: anything done outside of the mazda OEM service manual with non standard factory equipment is done at your own risk. |
|
| |
| The Following 2 Users Say Thank You to pinkcheese For This Useful Post: | djuosnteisn (11-23-2011), SKiZ0TT (11-23-2011) |
|
11-23-2011, 03:56 AM
| #47 | |
| jbr makes fall-a-parts. Join Date: Jan 2011 Location: Cambridge Ontario Canada
Posts: 13,163
(View Stats)
iTrader: (11)
Rep Power: 13536 Thanks: 25,744
Thanked 26,388 Times in 7,871 Posts
Groans: 793
Groaned at 496 Times in 321 Posts
| Not Ranked : 0 score Hahaha. That goes for YOU big turbo DJ.
__________________ Inb4 85% silicone core. It's better than aluminum. What's you buddy's ex wife trap? I <3 SP63, but that port job though... "The coolant must be evaporating." Bye Felicia "Exclusivity" - CP-enis Demodded. The Seals |
|
| |
| The Following User Says Thank You to Tokay444 For This Useful Post: | djuosnteisn (11-23-2011) |
|
11-23-2011, 09:41 AM
| #48 | |
| Captain Join Date: May 2008 Location: Rio Rancho, NM
Posts: 11,480
(View Stats)
iTrader: (5)
Rep Power: 15759 Thanks: 33,656
Thanked 30,915 Times in 7,770 Posts
Groans: 79
Groaned at 34 Times in 32 Posts
| Not Ranked : 0 score
Maybe i missed something. I failed at measuring the I.D. of the sprocket. Ended up working late, and then had to run home to fab a dump tube for a 20g mr2. I won't have time to swing by my mom's house (where the sprockets are) tonight either, but i have a spare motor in my garage at my house.... so i'll pull the crank pulley and measure the crank shaft.
__________________ 500awhp 440awtq uncorrected EFR8374 ms6, no meth, 50/50 e85, and IDCs in the 90's @ 500+ awhp, with room to grow... fifth port winning. Count down to head lift.... 3.... 2.... 30r ms3 dd on deck, has fuel... needs top mount turbo lovin' next... Check out the hair Salon: www.permtuning.com | |
|
| |
| The Following User Says Thank You to djuosnteisn For This Useful Post: | Tokay444 (11-23-2011) |
|
11-23-2011, 10:17 AM
| #49 | |
| jbr makes fall-a-parts. Join Date: Jan 2011 Location: Cambridge Ontario Canada
Posts: 13,163
(View Stats)
iTrader: (11)
Rep Power: 13536 Thanks: 25,744
Thanked 26,388 Times in 7,871 Posts
Groans: 793
Groaned at 496 Times in 321 Posts
| Not Ranked : 0 score You missed the disclaimer right before my post apparently. Doing things outside the manual(like big turbo) are done at own risk
__________________ Inb4 85% silicone core. It's better than aluminum. What's you buddy's ex wife trap? I <3 SP63, but that port job though... "The coolant must be evaporating." Bye Felicia "Exclusivity" - CP-enis Demodded. The Seals |
|
| |
| The Following User Says Thank You to Tokay444 For This Useful Post: | djuosnteisn (11-23-2011) |
|
11-23-2011, 10:20 AM
| #50 | |
| Captain Join Date: May 2008 Location: Rio Rancho, NM
Posts: 11,480
(View Stats)
iTrader: (5)
Rep Power: 15759 Thanks: 33,656
Thanked 30,915 Times in 7,770 Posts
Groans: 79
Groaned at 34 Times in 32 Posts
| Not Ranked : 0 score Lol, i kinda thought that was it.
__________________ 500awhp 440awtq uncorrected EFR8374 ms6, no meth, 50/50 e85, and IDCs in the 90's @ 500+ awhp, with room to grow... fifth port winning. Count down to head lift.... 3.... 2.... 30r ms3 dd on deck, has fuel... needs top mount turbo lovin' next... Check out the hair Salon: www.permtuning.com |
|
| |
| The Following User Says Thank You to djuosnteisn For This Useful Post: | Tokay444 (11-23-2011) |
|
11-23-2011, 02:00 PM
| #51 | |
| Speeeeeed    Join Date: Mar 2008 Location: Corpus Christi, Tx
Posts: 6,530
(View Stats)
iTrader: (24)
Rep Power: 7491 Thanks: 6,190
Thanked 14,562 Times in 2,807 Posts
Groans: 41
Groaned at 23 Times in 19 Posts
| Not Ranked : 0 score Im about to goto the storage unit to ship some parts, i have a pully and crank that I can measure. You guys just need the id and od?
__________________ 2006 Mazdaspeed 6 P&P, flow benched, head with welded EGR and +1mm inconel exhaust valves (260/200cfm @ .500"), Web Cams, Custom crankcase breather with integrated air/oil seperator, Custom 3/4" ID pan vac system, Blow through maf, Port matched IM, CNC AN-12 ORB block oil adapter, CP-e 88mm Stage 2 pistons, Pauter 22.5mm rods, ARP main, head, and crank studs, CP-e injector seals, Injector stud kit, Cometec 88mm 5 layer HG, Deatschworks flow tested matched injectors, DCR VVT, PTP 2250psi RV, Corksport front sway, Whiteline rear sway, AWR front/rear sway links, TT FMM, AWR 70d DMM, JBR 80D PMM, SU RMM, TT FRDM, CP-e RRDM, Autotech CDFP, DW65c ITFP, Custom L/A IC with a dual pass 20x25x1.5 heat exchanger, Dual Cobra I/C pumps, 2.5" ID 700hp I/A intercooler, Custom DP, Corksport catback, Corksport exhaust hangers, chrome plated genpu valve cover, chrome plated timing cover, Spin on oil filter, Fluidyne dual pass AN-12 oil cooler, Hayden oil cooler fan controller, Dual 4.7" SPAL oil cooler fans, Canton Racing 22-480 oil tstat, Custom BMRS AN-12 oil lines, SPC ball joints, 55w/35w headlights and independently switched fogs on custom waterproof harnesses, PIAA Super Plasma driving and interior lights, rear diff cutout switch, 3M clear front cover, Volk 17x7.5 wheels, Custom tcase bearing cap upgrade, GS EBC 3 port, Redline SS hood lift, Versatune, Defi gauges, Innovate MTX-L WB gauge, triple center gauge pod, Block8head dual vent pod, Redline shift boot & ebrake cover & arm rest cover, Mazdaspeed CF ebrake handle, SBC Full Face Feramic Clutch Disc, Dashawk, ACL rod bearings, King main bearings, Cosworth BSD, Custom windage tray, Holset HX35w, Creative Performance T3 EWG manifold, HKS VTA BOV, A1 H11 head studs, Hylomar HG sealant, SSP EGR delete plate, JBR EGR IM plug, JGS 40mm Race EWG  |
|
| |
|
11-23-2011, 02:13 PM
| #52 | |
| Captain Join Date: May 2008 Location: Rio Rancho, NM
Posts: 11,480
(View Stats)
iTrader: (5)
Rep Power: 15759 Thanks: 33,656
Thanked 30,915 Times in 7,770 Posts
Groans: 79
Groaned at 34 Times in 32 Posts
| Not Ranked : 0 score Yup, I.D. of the crank sprockets. Might not hurt to get a tooth count too i guess... but i sincerely doubt that would be any different. Just take a pic with your phone and the micrometers
__________________ 500awhp 440awtq uncorrected EFR8374 ms6, no meth, 50/50 e85, and IDCs in the 90's @ 500+ awhp, with room to grow... fifth port winning. Count down to head lift.... 3.... 2.... 30r ms3 dd on deck, has fuel... needs top mount turbo lovin' next... Check out the hair Salon: www.permtuning.com |
|
| |
|
11-23-2011, 02:17 PM
| #53 | |
| Speeeeeed Join Date: Mar 2008 Location: Corpus Christi, Tx
Posts: 6,530
(View Stats)
iTrader: (24)
Rep Power: 7491 Thanks: 6,190
Thanked 14,562 Times in 2,807 Posts
Groans: 41
Groaned at 23 Times in 19 Posts
| Not Ranked : 0 score You got it.
__________________ 2006 Mazdaspeed 6 P&P, flow benched, head with welded EGR and +1mm inconel exhaust valves (260/200cfm @ .500"), Web Cams, Custom crankcase breather with integrated air/oil seperator, Custom 3/4" ID pan vac system, Blow through maf, Port matched IM, CNC AN-12 ORB block oil adapter, CP-e 88mm Stage 2 pistons, Pauter 22.5mm rods, ARP main, head, and crank studs, CP-e injector seals, Injector stud kit, Cometec 88mm 5 layer HG, Deatschworks flow tested matched injectors, DCR VVT, PTP 2250psi RV, Corksport front sway, Whiteline rear sway, AWR front/rear sway links, TT FMM, AWR 70d DMM, JBR 80D PMM, SU RMM, TT FRDM, CP-e RRDM, Autotech CDFP, DW65c ITFP, Custom L/A IC with a dual pass 20x25x1.5 heat exchanger, Dual Cobra I/C pumps, 2.5" ID 700hp I/A intercooler, Custom DP, Corksport catback, Corksport exhaust hangers, chrome plated genpu valve cover, chrome plated timing cover, Spin on oil filter, Fluidyne dual pass AN-12 oil cooler, Hayden oil cooler fan controller, Dual 4.7" SPAL oil cooler fans, Canton Racing 22-480 oil tstat, Custom BMRS AN-12 oil lines, SPC ball joints, 55w/35w headlights and independently switched fogs on custom waterproof harnesses, PIAA Super Plasma driving and interior lights, rear diff cutout switch, 3M clear front cover, Volk 17x7.5 wheels, Custom tcase bearing cap upgrade, GS EBC 3 port, Redline SS hood lift, Versatune, Defi gauges, Innovate MTX-L WB gauge, triple center gauge pod, Block8head dual vent pod, Redline shift boot & ebrake cover & arm rest cover, Mazdaspeed CF ebrake handle, SBC Full Face Feramic Clutch Disc, Dashawk, ACL rod bearings, King main bearings, Cosworth BSD, Custom windage tray, Holset HX35w, Creative Performance T3 EWG manifold, HKS VTA BOV, A1 H11 head studs, Hylomar HG sealant, SSP EGR delete plate, JBR EGR IM plug, JGS 40mm Race EWG |
|
| |
| The Following User Says Thank You to 06Speed6 For This Useful Post: | djuosnteisn (11-23-2011) |
|
11-23-2011, 05:22 PM
| #54 | |
| Speeeeeed Join Date: Mar 2008 Location: Corpus Christi, Tx
Posts: 6,530
(View Stats)
iTrader: (24)
Rep Power: 7491 Thanks: 6,190
Thanked 14,562 Times in 2,807 Posts
Groans: 41
Groaned at 23 Times in 19 Posts
| Not Ranked : 0 score Here ya go
__________________ 2006 Mazdaspeed 6 P&P, flow benched, head with welded EGR and +1mm inconel exhaust valves (260/200cfm @ .500"), Web Cams, Custom crankcase breather with integrated air/oil seperator, Custom 3/4" ID pan vac system, Blow through maf, Port matched IM, CNC AN-12 ORB block oil adapter, CP-e 88mm Stage 2 pistons, Pauter 22.5mm rods, ARP main, head, and crank studs, CP-e injector seals, Injector stud kit, Cometec 88mm 5 layer HG, Deatschworks flow tested matched injectors, DCR VVT, PTP 2250psi RV, Corksport front sway, Whiteline rear sway, AWR front/rear sway links, TT FMM, AWR 70d DMM, JBR 80D PMM, SU RMM, TT FRDM, CP-e RRDM, Autotech CDFP, DW65c ITFP, Custom L/A IC with a dual pass 20x25x1.5 heat exchanger, Dual Cobra I/C pumps, 2.5" ID 700hp I/A intercooler, Custom DP, Corksport catback, Corksport exhaust hangers, chrome plated genpu valve cover, chrome plated timing cover, Spin on oil filter, Fluidyne dual pass AN-12 oil cooler, Hayden oil cooler fan controller, Dual 4.7" SPAL oil cooler fans, Canton Racing 22-480 oil tstat, Custom BMRS AN-12 oil lines, SPC ball joints, 55w/35w headlights and independently switched fogs on custom waterproof harnesses, PIAA Super Plasma driving and interior lights, rear diff cutout switch, 3M clear front cover, Volk 17x7.5 wheels, Custom tcase bearing cap upgrade, GS EBC 3 port, Redline SS hood lift, Versatune, Defi gauges, Innovate MTX-L WB gauge, triple center gauge pod, Block8head dual vent pod, Redline shift boot & ebrake cover & arm rest cover, Mazdaspeed CF ebrake handle, SBC Full Face Feramic Clutch Disc, Dashawk, ACL rod bearings, King main bearings, Cosworth BSD, Custom windage tray, Holset HX35w, Creative Performance T3 EWG manifold, HKS VTA BOV, A1 H11 head studs, Hylomar HG sealant, SSP EGR delete plate, JBR EGR IM plug, JGS 40mm Race EWG |
|
| |
| The Following 4 Users Say Thank You to 06Speed6 For This Useful Post: |
|
11-23-2011, 05:44 PM
| #55 | |
| Bob Ross Fanclub  Join Date: Jan 2009 Location: SEFL
Posts: 3,811
(View Stats)
iTrader: (8)
Rep Power: 4333 Thanks: 4,534
Thanked 8,223 Times in 2,349 Posts
Groans: 0
Groaned at 35 Times in 20 Posts
| Not Ranked : 0 score Any reason why I couldn't use a gen2 short block on a gen1? This thing with the key on the crank pulley is the only difference I've seen so far. A new gen2 short block for $2160 is really not so bad. And it's $300 LESS than a gen1. shuuu. wtf.
__________________  |
|
| |
|
11-23-2011, 05:55 PM
| #56 | |
| Join Date: Jan 2011 Location: vancouver,WA
Posts: 554
(View Stats)
iTrader: (0)
Rep Power: 0 Thanks: 184
Thanked 663 Times in 252 Posts
Groans: 13
Groaned at 24 Times in 5 Posts
| Not Ranked : 0 score MS3 DISI engine regardless of gen 1 or 2 are the exact same I' am like almost 100% sure of this, now the mzr engines- gen2 are what was changed radically, keyed forge crankshaft, rotating assembly is still cheap ass cast crap, the stroke was increased to go from 2.3 to 2.5 displacement, so different crank throw (longer) and longer rods. I do not think you disi guys would have anything to gain from taking ms3 gen2 engine parts cause they are the same, the chasis platform represent the difference between gen 1 and 2 for your cars Side note I think it is fucking horseshit that import mags do buyers guides and rate the ms3 head and shoulder above all else in the fwd catergory ie dsport in particular yet they turn their noses up at them, sick and fucking tired of reading about feature honda eg and dg's. |
|
| |
| The Following 3 Users Say Thank You to Tabasco69 For This Useful Post: |
|
11-23-2011, 07:16 PM
| #57 | |
| Captain Join Date: May 2008 Location: Rio Rancho, NM
Posts: 11,480
(View Stats)
iTrader: (5)
Rep Power: 15759 Thanks: 33,656
Thanked 30,915 Times in 7,770 Posts
Groans: 79
Groaned at 34 Times in 32 Posts
| Not Ranked : 0 score MSF takes way too long to show attached pics when i click em... i just measured the diameter on the block in my garage, with ghetto ass measuring tape... and it was right at one inch. Is that what your dial shows marcus?
__________________ 500awhp 440awtq uncorrected EFR8374 ms6, no meth, 50/50 e85, and IDCs in the 90's @ 500+ awhp, with room to grow... fifth port winning. Count down to head lift.... 3.... 2.... 30r ms3 dd on deck, has fuel... needs top mount turbo lovin' next... Check out the hair Salon: www.permtuning.com | |
|
| |
|
11-23-2011, 09:02 PM
| #58 | |
 Join Date: Mar 2009 Location: LONG ISLAND, NY
Posts: 582
(View Stats)
iTrader: (5)
Rep Power: 305 Thanks: 629
Thanked 333 Times in 148 Posts
Groans: 15
Groaned at 3 Times in 3 Posts
| Not Ranked : 0 score wish i read this thread before i blew up my valves but awesome disscussion awesome knowledge to add to the bank
__________________ 2008 RED MS3 GT>>>T3 GT35R .82 A/R>>>Tial 44 EWG dumping>>>SteedSpeed T3 Mani>>>Built Motor PERM!  |
|
| |
| The Following User Says Thank You to LiEast For This Useful Post: | djuosnteisn (11-24-2011) |
|
11-23-2011, 11:24 PM
| #59 | |
| Speeeeeed Join Date: Mar 2008 Location: Corpus Christi, Tx
Posts: 6,530
(View Stats)
iTrader: (24)
Rep Power: 7491 Thanks: 6,190
Thanked 14,562 Times in 2,807 Posts
Groans: 41
Groaned at 23 Times in 19 Posts
| Not Ranked : 0 score ID is 1.044" OD is 1.046"
__________________ 2006 Mazdaspeed 6 P&P, flow benched, head with welded EGR and +1mm inconel exhaust valves (260/200cfm @ .500"), Web Cams, Custom crankcase breather with integrated air/oil seperator, Custom 3/4" ID pan vac system, Blow through maf, Port matched IM, CNC AN-12 ORB block oil adapter, CP-e 88mm Stage 2 pistons, Pauter 22.5mm rods, ARP main, head, and crank studs, CP-e injector seals, Injector stud kit, Cometec 88mm 5 layer HG, Deatschworks flow tested matched injectors, DCR VVT, PTP 2250psi RV, Corksport front sway, Whiteline rear sway, AWR front/rear sway links, TT FMM, AWR 70d DMM, JBR 80D PMM, SU RMM, TT FRDM, CP-e RRDM, Autotech CDFP, DW65c ITFP, Custom L/A IC with a dual pass 20x25x1.5 heat exchanger, Dual Cobra I/C pumps, 2.5" ID 700hp I/A intercooler, Custom DP, Corksport catback, Corksport exhaust hangers, chrome plated genpu valve cover, chrome plated timing cover, Spin on oil filter, Fluidyne dual pass AN-12 oil cooler, Hayden oil cooler fan controller, Dual 4.7" SPAL oil cooler fans, Canton Racing 22-480 oil tstat, Custom BMRS AN-12 oil lines, SPC ball joints, 55w/35w headlights and independently switched fogs on custom waterproof harnesses, PIAA Super Plasma driving and interior lights, rear diff cutout switch, 3M clear front cover, Volk 17x7.5 wheels, Custom tcase bearing cap upgrade, GS EBC 3 port, Redline SS hood lift, Versatune, Defi gauges, Innovate MTX-L WB gauge, triple center gauge pod, Block8head dual vent pod, Redline shift boot & ebrake cover & arm rest cover, Mazdaspeed CF ebrake handle, SBC Full Face Feramic Clutch Disc, Dashawk, ACL rod bearings, King main bearings, Cosworth BSD, Custom windage tray, Holset HX35w, Creative Performance T3 EWG manifold, HKS VTA BOV, A1 H11 head studs, Hylomar HG sealant, SSP EGR delete plate, JBR EGR IM plug, JGS 40mm Race EWG |
|
| |
| The Following User Says Thank You to 06Speed6 For This Useful Post: | djuosnteisn (11-24-2011) |
|
11-24-2011, 03:54 AM
| #60 | |
| jbr makes fall-a-parts. Join Date: Jan 2011 Location: Cambridge Ontario Canada
Posts: 13,163
(View Stats)
iTrader: (11)
Rep Power: 13536 Thanks: 25,744
Thanked 26,388 Times in 7,871 Posts
Groans: 793
Groaned at 496 Times in 321 Posts
| Not Ranked : 0 score 2 thou clearance? Seems like a lot.
__________________ Inb4 85% silicone core. It's better than aluminum. What's you buddy's ex wife trap? I <3 SP63, but that port job though... "The coolant must be evaporating." Bye Felicia "Exclusivity" - CP-enis Demodded. The Seals |
|
| |
|
11-24-2011, 08:16 AM
| #61 | |
| Speeeeeed Join Date: Mar 2008 Location: Corpus Christi, Tx
Posts: 6,530
(View Stats)
iTrader: (24)
Rep Power: 7491 Thanks: 6,190
Thanked 14,562 Times in 2,807 Posts
Groans: 41
Groaned at 23 Times in 19 Posts
| Not Ranked : 0 score Its about what I expected, after torquing that bolt down I dont think it makes a difference.
__________________ 2006 Mazdaspeed 6 P&P, flow benched, head with welded EGR and +1mm inconel exhaust valves (260/200cfm @ .500"), Web Cams, Custom crankcase breather with integrated air/oil seperator, Custom 3/4" ID pan vac system, Blow through maf, Port matched IM, CNC AN-12 ORB block oil adapter, CP-e 88mm Stage 2 pistons, Pauter 22.5mm rods, ARP main, head, and crank studs, CP-e injector seals, Injector stud kit, Cometec 88mm 5 layer HG, Deatschworks flow tested matched injectors, DCR VVT, PTP 2250psi RV, Corksport front sway, Whiteline rear sway, AWR front/rear sway links, TT FMM, AWR 70d DMM, JBR 80D PMM, SU RMM, TT FRDM, CP-e RRDM, Autotech CDFP, DW65c ITFP, Custom L/A IC with a dual pass 20x25x1.5 heat exchanger, Dual Cobra I/C pumps, 2.5" ID 700hp I/A intercooler, Custom DP, Corksport catback, Corksport exhaust hangers, chrome plated genpu valve cover, chrome plated timing cover, Spin on oil filter, Fluidyne dual pass AN-12 oil cooler, Hayden oil cooler fan controller, Dual 4.7" SPAL oil cooler fans, Canton Racing 22-480 oil tstat, Custom BMRS AN-12 oil lines, SPC ball joints, 55w/35w headlights and independently switched fogs on custom waterproof harnesses, PIAA Super Plasma driving and interior lights, rear diff cutout switch, 3M clear front cover, Volk 17x7.5 wheels, Custom tcase bearing cap upgrade, GS EBC 3 port, Redline SS hood lift, Versatune, Defi gauges, Innovate MTX-L WB gauge, triple center gauge pod, Block8head dual vent pod, Redline shift boot & ebrake cover & arm rest cover, Mazdaspeed CF ebrake handle, SBC Full Face Feramic Clutch Disc, Dashawk, ACL rod bearings, King main bearings, Cosworth BSD, Custom windage tray, Holset HX35w, Creative Performance T3 EWG manifold, HKS VTA BOV, A1 H11 head studs, Hylomar HG sealant, SSP EGR delete plate, JBR EGR IM plug, JGS 40mm Race EWG |
|
| |
| The Following User Says Thank You to 06Speed6 For This Useful Post: | djuosnteisn (11-24-2011) |
|
11-28-2011, 02:37 PM
| #62 | |
 Join Date: Sep 2008 Location: Soledad, CA
Posts: 824
(View Stats)
iTrader: (1)
Rep Power: 446 Thanks: 393
Thanked 597 Times in 220 Posts
Groans: 5
Groaned at 5 Times in 2 Posts
| Not Ranked : 0 score
__________________ Cobb AP, 504whp 492wtq | |
|
| |
| The Following User Says Thank You to 11cruzito11 For This Useful Post: | djuosnteisn (11-28-2011) |
|
11-28-2011, 10:00 PM
| #63 | |
| Join Date: Jan 2011 Location: vancouver,WA
Posts: 554
(View Stats)
iTrader: (0)
Rep Power: 0 Thanks: 184
Thanked 663 Times in 252 Posts
Groans: 13
Groaned at 24 Times in 5 Posts
| Not Ranked : 0 score I would call ARP directly and ask them .....but I 'm pretty sure it would be the same as the mzr...meh still call to verify  part no.251-2501 http://www.summitracing.com/parts/AR...2501/?rtype=10 |
|
| |
| The Following 3 Users Say Thank You to Tabasco69 For This Useful Post: |
|
11-28-2011, 10:09 PM
| #64 | |
| Captain Join Date: May 2008 Location: Rio Rancho, NM
Posts: 11,480
(View Stats)
iTrader: (5)
Rep Power: 15759 Thanks: 33,656
Thanked 30,915 Times in 7,770 Posts
Groans: 79
Groaned at 34 Times in 32 Posts
| Not Ranked : 0 score
Can you confirm Marcus's measurements are either the same or different than the duratec?
__________________ 500awhp 440awtq uncorrected EFR8374 ms6, no meth, 50/50 e85, and IDCs in the 90's @ 500+ awhp, with room to grow... fifth port winning. Count down to head lift.... 3.... 2.... 30r ms3 dd on deck, has fuel... needs top mount turbo lovin' next... Check out the hair Salon: www.permtuning.com | |
|
| |
| The Following User Says Thank You to djuosnteisn For This Useful Post: | Tokay444 (11-29-2011) |
|
11-29-2011, 06:00 AM
| #65 | |
 Join Date: May 2009 Location: Clw/ NPR Florida
Posts: 1,706
(View Stats)
iTrader: (1)
Rep Power: 0 Thanks: 10,516
Thanked 2,917 Times in 657 Posts
Groans: 89
Groaned at 17 Times in 10 Posts
(Thread Starter) | Not Ranked : 0 score Ok maybe we could make a New post about this idea .. Some guys on here have had the timming slip or bolt come loose. I would like to know what you guys did wrong . As in .. Was the tourque enought Did u do the 1/4 turn New bolt new washers I would like to know wear you went wrong . Maybe a stickey for referance on not what to do . Just a idea .. I think It may be time for my VVT/ chain/ tentioner to be done and I an scared as hell !
__________________ [SIGPIC][/SIGPIC] 2013 EVO X GSR Wicked White w/Areo H&R springs/H&R 15mm spacers MAP modified 3" Magna Flow cat back MAP catless testpipe MAP UICP Grimmspeed 3 port Cosworth filter SSP relay kit TWM Desert Eagle shift knob AEM wideband gauge Prosport boost gauge EvoX piller pod 30%Tint Slowpoke Tuned 339hp/336tq **** SOLD ***** 2006 speed6 " A woman's asshole is like a 9-volt battery..U know its wrong, but sooner or later ur gonna put ur tongue on it !! " |
|
| |
| The Following User Says Thank You to jracer For This Useful Post: | Alpha (04-28-2012) |
|
11-29-2011, 06:42 AM
| #66 | |
 Join Date: Jun 2008 Location: Greenville, SC
Posts: 3,250
(View Stats)
iTrader: (1)
Rep Power: 2562 Thanks: 1,586
Thanked 4,825 Times in 1,435 Posts
Groans: 125
Groaned at 21 Times in 20 Posts
| Not Ranked : 0 score It is quite interesting that I missed this thread, and this past weekend came to the conclusion while helping tune @oldognewtriks car. The conclusion (without seeing this thread) was that the crank pulley slipped and lost timing with the crank
__________________ 1994 Mazda RX7 - 20b-rew - S480sx - Injector Dynamics - Xcessive Manufacturing - Full Function Engineering - Haltech Elite 2500 |
|
| |
| The Following User Says Thank You to socks For This Useful Post: | jracer (11-29-2011) |
|
11-29-2011, 07:50 AM
| #67 | |
 Join Date: Mar 2009
Posts: 133
(View Stats)
iTrader: (0)
Rep Power: 0 Thanks: 2
Thanked 26 Times in 17 Posts
Groans: 0
Groaned at 0 Times in 0 Posts
| Not Ranked : 0 score We will know Saturday socks. I am buying a new bolt and possibly installing the stck crank pulley instead of the aftermarket one. |
|
| |
|
11-29-2011, 08:29 AM
| #68 | |
| Captain Join Date: May 2008 Location: Rio Rancho, NM
Posts: 11,480
(View Stats)
iTrader: (5)
Rep Power: 15759 Thanks: 33,656
Thanked 30,915 Times in 7,770 Posts
Groans: 79
Groaned at 34 Times in 32 Posts
| Not Ranked : 0 score
As long as you do it right, you shouldn't have issues imo.
__________________ 500awhp 440awtq uncorrected EFR8374 ms6, no meth, 50/50 e85, and IDCs in the 90's @ 500+ awhp, with room to grow... fifth port winning. Count down to head lift.... 3.... 2.... 30r ms3 dd on deck, has fuel... needs top mount turbo lovin' next... Check out the hair Salon: www.permtuning.com | |
|
| |
| The Following 4 Users Say Thank You to djuosnteisn For This Useful Post: |
|
11-29-2011, 08:42 AM
| #69 | |
| Join Date: May 2009 Location: Clw/ NPR Florida
Posts: 1,706
(View Stats)
iTrader: (1)
Rep Power: 0 Thanks: 10,516
Thanked 2,917 Times in 657 Posts
Groans: 89
Groaned at 17 Times in 10 Posts
(Thread Starter) | Not Ranked : 0 score thanks DJ..
__________________ [SIGPIC][/SIGPIC] 2013 EVO X GSR Wicked White w/Areo H&R springs/H&R 15mm spacers MAP modified 3" Magna Flow cat back MAP catless testpipe MAP UICP Grimmspeed 3 port Cosworth filter SSP relay kit TWM Desert Eagle shift knob AEM wideband gauge Prosport boost gauge EvoX piller pod 30%Tint Slowpoke Tuned 339hp/336tq **** SOLD ***** 2006 speed6 " A woman's asshole is like a 9-volt battery..U know its wrong, but sooner or later ur gonna put ur tongue on it !! " |
|
| |
| The Following User Says Thank You to jracer For This Useful Post: | djuosnteisn (11-29-2011) |
|
11-29-2011, 11:48 AM
| #70 | |
| Join Date: Apr 2011
Posts: 339
(View Stats)
iTrader: (0)
Rep Power: 0 Thanks: 5
Thanked 212 Times in 96 Posts
Groans: 0
Groaned at 15 Times in 7 Posts
| Not Ranked : 0 score Sorry been a little MIA lately Duratec measurements off a spare 2.3L sprocket I have/ I.D. 1.047" O.D. 1.484" taken with a digital micrometer. |
|
| |
| The Following 2 Users Say Thank You to pinkcheese For This Useful Post: | djuosnteisn (11-29-2011), jracer (11-29-2011) |
|
11-29-2011, 12:04 PM
| #71 | |
| Captain Join Date: May 2008 Location: Rio Rancho, NM
Posts: 11,480
(View Stats)
iTrader: (5)
Rep Power: 15759 Thanks: 33,656
Thanked 30,915 Times in 7,770 Posts
Groans: 79
Groaned at 34 Times in 32 Posts
| Not Ranked : 0 score
__________________ 500awhp 440awtq uncorrected EFR8374 ms6, no meth, 50/50 e85, and IDCs in the 90's @ 500+ awhp, with room to grow... fifth port winning. Count down to head lift.... 3.... 2.... 30r ms3 dd on deck, has fuel... needs top mount turbo lovin' next... Check out the hair Salon: www.permtuning.com | ||
|
| |
|
11-29-2011, 12:51 PM
| #72 | |
| Speeeeeed Join Date: Mar 2008 Location: Corpus Christi, Tx
Posts: 6,530
(View Stats)
iTrader: (24)
Rep Power: 7491 Thanks: 6,190
Thanked 14,562 Times in 2,807 Posts
Groans: 41
Groaned at 23 Times in 19 Posts
| Not Ranked : 0 score There is no way thats right, the crank i measured off of had some surface rust on the snout so it nay be a couple thousandths off.
__________________ 2006 Mazdaspeed 6 P&P, flow benched, head with welded EGR and +1mm inconel exhaust valves (260/200cfm @ .500"), Web Cams, Custom crankcase breather with integrated air/oil seperator, Custom 3/4" ID pan vac system, Blow through maf, Port matched IM, CNC AN-12 ORB block oil adapter, CP-e 88mm Stage 2 pistons, Pauter 22.5mm rods, ARP main, head, and crank studs, CP-e injector seals, Injector stud kit, Cometec 88mm 5 layer HG, Deatschworks flow tested matched injectors, DCR VVT, PTP 2250psi RV, Corksport front sway, Whiteline rear sway, AWR front/rear sway links, TT FMM, AWR 70d DMM, JBR 80D PMM, SU RMM, TT FRDM, CP-e RRDM, Autotech CDFP, DW65c ITFP, Custom L/A IC with a dual pass 20x25x1.5 heat exchanger, Dual Cobra I/C pumps, 2.5" ID 700hp I/A intercooler, Custom DP, Corksport catback, Corksport exhaust hangers, chrome plated genpu valve cover, chrome plated timing cover, Spin on oil filter, Fluidyne dual pass AN-12 oil cooler, Hayden oil cooler fan controller, Dual 4.7" SPAL oil cooler fans, Canton Racing 22-480 oil tstat, Custom BMRS AN-12 oil lines, SPC ball joints, 55w/35w headlights and independently switched fogs on custom waterproof harnesses, PIAA Super Plasma driving and interior lights, rear diff cutout switch, 3M clear front cover, Volk 17x7.5 wheels, Custom tcase bearing cap upgrade, GS EBC 3 port, Redline SS hood lift, Versatune, Defi gauges, Innovate MTX-L WB gauge, triple center gauge pod, Block8head dual vent pod, Redline shift boot & ebrake cover & arm rest cover, Mazdaspeed CF ebrake handle, SBC Full Face Feramic Clutch Disc, Dashawk, ACL rod bearings, King main bearings, Cosworth BSD, Custom windage tray, Holset HX35w, Creative Performance T3 EWG manifold, HKS VTA BOV, A1 H11 head studs, Hylomar HG sealant, SSP EGR delete plate, JBR EGR IM plug, JGS 40mm Race EWG |
|
| |
| The Following User Says Thank You to 06Speed6 For This Useful Post: | djuosnteisn (11-29-2011) |
|
11-29-2011, 01:43 PM
| #73 | |
| Join Date: Apr 2011
Posts: 339
(View Stats)
iTrader: (0)
Rep Power: 0 Thanks: 5
Thanked 212 Times in 96 Posts
Groans: 0
Groaned at 15 Times in 7 Posts
| Not Ranked : 0 score These are sprocket dimensions. I do not have a spare crank to measure. |
|
| |
|
11-29-2011, 01:53 PM
| #74 | |
| Speeeeeed Join Date: Mar 2008 Location: Corpus Christi, Tx
Posts: 6,530
(View Stats)
iTrader: (24)
Rep Power: 7491 Thanks: 6,190
Thanked 14,562 Times in 2,807 Posts
Groans: 41
Groaned at 23 Times in 19 Posts
| Not Ranked : 0 score Ohhh you measured the outside part of the sprocket not the crank. Mine was 1.455 but I dont think that is a critical measurement.
__________________ 2006 Mazdaspeed 6 P&P, flow benched, head with welded EGR and +1mm inconel exhaust valves (260/200cfm @ .500"), Web Cams, Custom crankcase breather with integrated air/oil seperator, Custom 3/4" ID pan vac system, Blow through maf, Port matched IM, CNC AN-12 ORB block oil adapter, CP-e 88mm Stage 2 pistons, Pauter 22.5mm rods, ARP main, head, and crank studs, CP-e injector seals, Injector stud kit, Cometec 88mm 5 layer HG, Deatschworks flow tested matched injectors, DCR VVT, PTP 2250psi RV, Corksport front sway, Whiteline rear sway, AWR front/rear sway links, TT FMM, AWR 70d DMM, JBR 80D PMM, SU RMM, TT FRDM, CP-e RRDM, Autotech CDFP, DW65c ITFP, Custom L/A IC with a dual pass 20x25x1.5 heat exchanger, Dual Cobra I/C pumps, 2.5" ID 700hp I/A intercooler, Custom DP, Corksport catback, Corksport exhaust hangers, chrome plated genpu valve cover, chrome plated timing cover, Spin on oil filter, Fluidyne dual pass AN-12 oil cooler, Hayden oil cooler fan controller, Dual 4.7" SPAL oil cooler fans, Canton Racing 22-480 oil tstat, Custom BMRS AN-12 oil lines, SPC ball joints, 55w/35w headlights and independently switched fogs on custom waterproof harnesses, PIAA Super Plasma driving and interior lights, rear diff cutout switch, 3M clear front cover, Volk 17x7.5 wheels, Custom tcase bearing cap upgrade, GS EBC 3 port, Redline SS hood lift, Versatune, Defi gauges, Innovate MTX-L WB gauge, triple center gauge pod, Block8head dual vent pod, Redline shift boot & ebrake cover & arm rest cover, Mazdaspeed CF ebrake handle, SBC Full Face Feramic Clutch Disc, Dashawk, ACL rod bearings, King main bearings, Cosworth BSD, Custom windage tray, Holset HX35w, Creative Performance T3 EWG manifold, HKS VTA BOV, A1 H11 head studs, Hylomar HG sealant, SSP EGR delete plate, JBR EGR IM plug, JGS 40mm Race EWG |
|
| |
|
11-29-2011, 02:07 PM
| #75 | |
| Captain Join Date: May 2008 Location: Rio Rancho, NM
Posts: 11,480
(View Stats)
iTrader: (5)
Rep Power: 15759 Thanks: 33,656
Thanked 30,915 Times in 7,770 Posts
Groans: 79
Groaned at 34 Times in 32 Posts
| Not Ranked : 0 score At this point... i guess it's safe to say the keyed products from cosworth would indeed work on the DISI MZR's.... eh?
__________________ 500awhp 440awtq uncorrected EFR8374 ms6, no meth, 50/50 e85, and IDCs in the 90's @ 500+ awhp, with room to grow... fifth port winning. Count down to head lift.... 3.... 2.... 30r ms3 dd on deck, has fuel... needs top mount turbo lovin' next... Check out the hair Salon: www.permtuning.com |
|
| |
|
11-29-2011, 07:07 PM
| #76 | |
| jbr makes fall-a-parts. Join Date: Jan 2011 Location: Cambridge Ontario Canada
Posts: 13,163
(View Stats)
iTrader: (11)
Rep Power: 13536 Thanks: 25,744
Thanked 26,388 Times in 7,871 Posts
Groans: 793
Groaned at 496 Times in 321 Posts
| Not Ranked : 0 score If they have the same amount of teeth, pitch and pressure angle.
__________________ Inb4 85% silicone core. It's better than aluminum. What's you buddy's ex wife trap? I <3 SP63, but that port job though... "The coolant must be evaporating." Bye Felicia "Exclusivity" - CP-enis Demodded. The Seals |
|
| |
| The Following User Says Thank You to Tokay444 For This Useful Post: | laxplayermjd (11-29-2011) |
|
11-29-2011, 07:50 PM
| #77 | |
| Join Date: Apr 2011
Posts: 339
(View Stats)
iTrader: (0)
Rep Power: 0 Thanks: 5
Thanked 212 Times in 96 Posts
Groans: 0
Groaned at 15 Times in 7 Posts
| Not Ranked : 0 score The Cosworth is a 19 teeth sprocket and a 38 teeth cam gear with a 8 MM chain. |
|
| |
| The Following User Says Thank You to pinkcheese For This Useful Post: | djuosnteisn (11-30-2011) |
|
11-30-2011, 08:27 AM
| #78 | |
| Captain Join Date: May 2008 Location: Rio Rancho, NM
Posts: 11,480
(View Stats)
iTrader: (5)
Rep Power: 15759 Thanks: 33,656
Thanked 30,915 Times in 7,770 Posts
Groans: 79
Groaned at 34 Times in 32 Posts
| Not Ranked : 0 score
__________________ 500awhp 440awtq uncorrected EFR8374 ms6, no meth, 50/50 e85, and IDCs in the 90's @ 500+ awhp, with room to grow... fifth port winning. Count down to head lift.... 3.... 2.... 30r ms3 dd on deck, has fuel... needs top mount turbo lovin' next... Check out the hair Salon: www.permtuning.com | |
|
| |
|
11-30-2011, 12:18 PM
| #79 | |
| Captain Join Date: May 2008 Location: Rio Rancho, NM
Posts: 11,480
(View Stats)
iTrader: (5)
Rep Power: 15759 Thanks: 33,656
Thanked 30,915 Times in 7,770 Posts
Groans: 79
Groaned at 34 Times in 32 Posts
| Not Ranked : 0 score

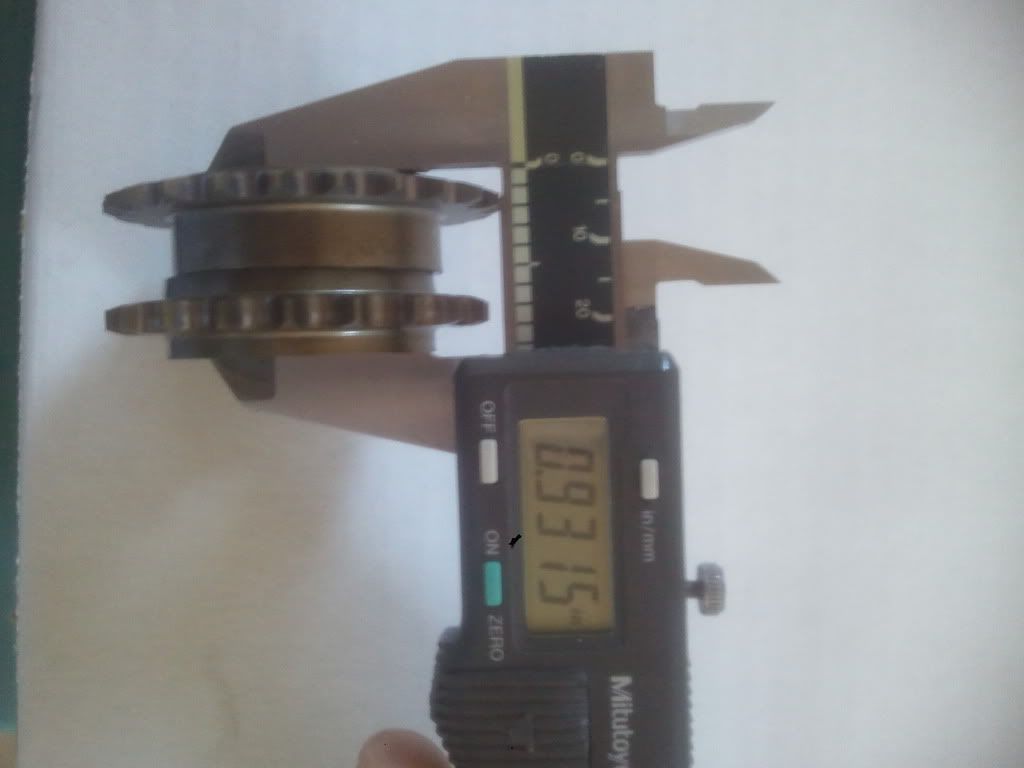

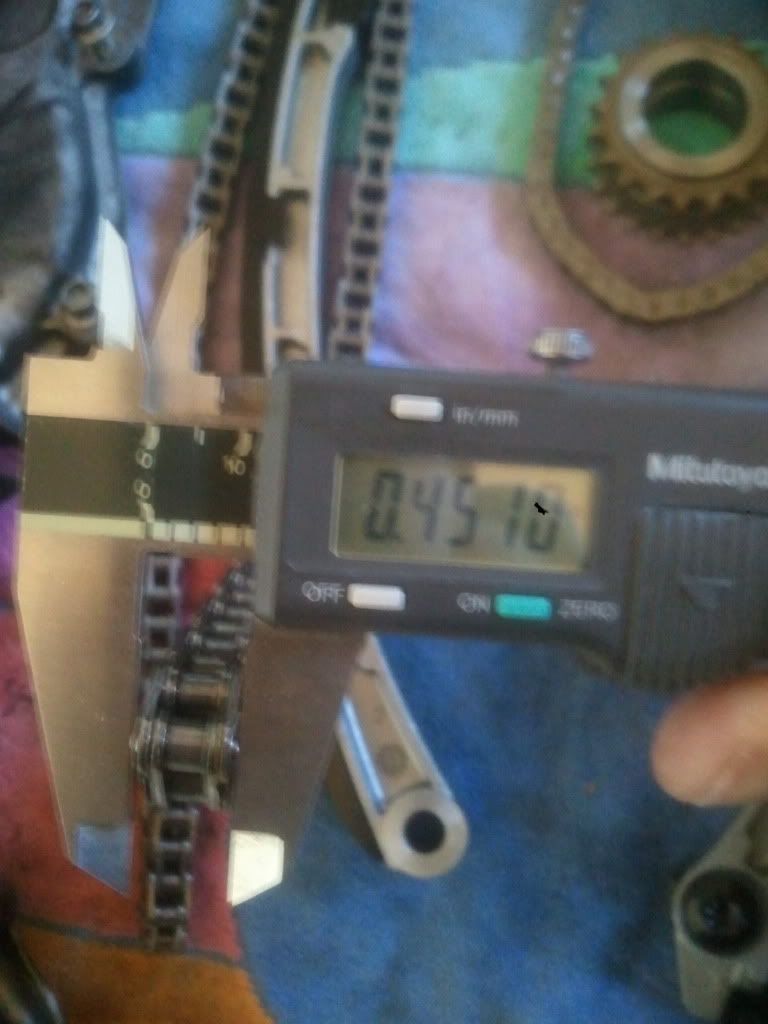

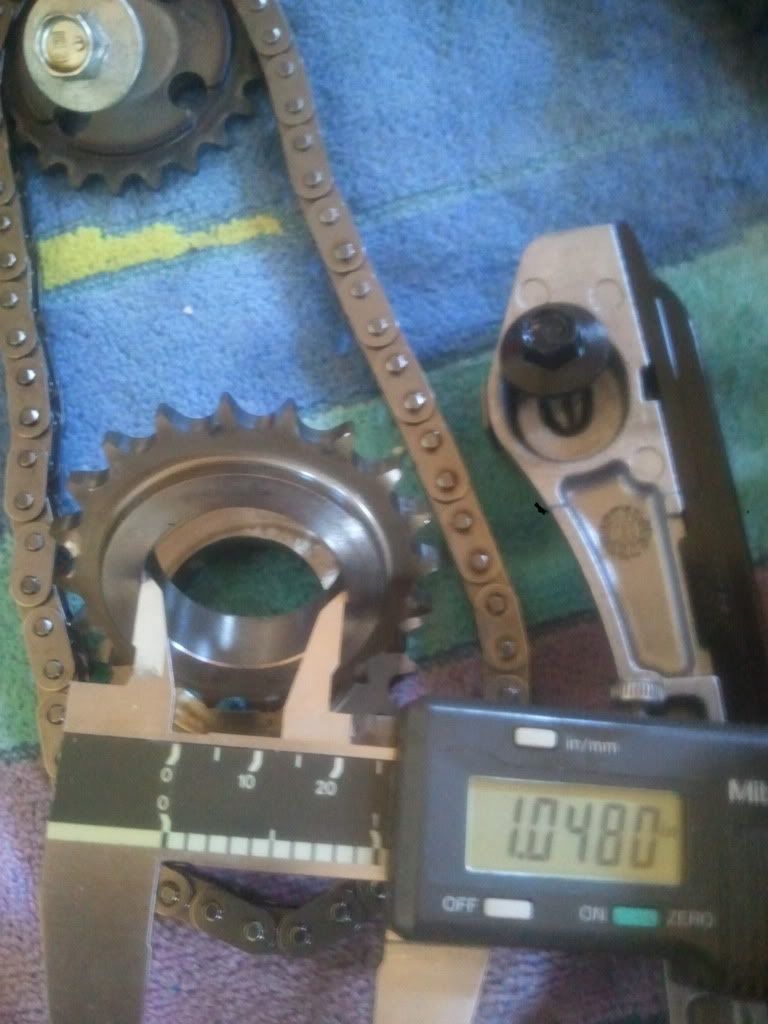

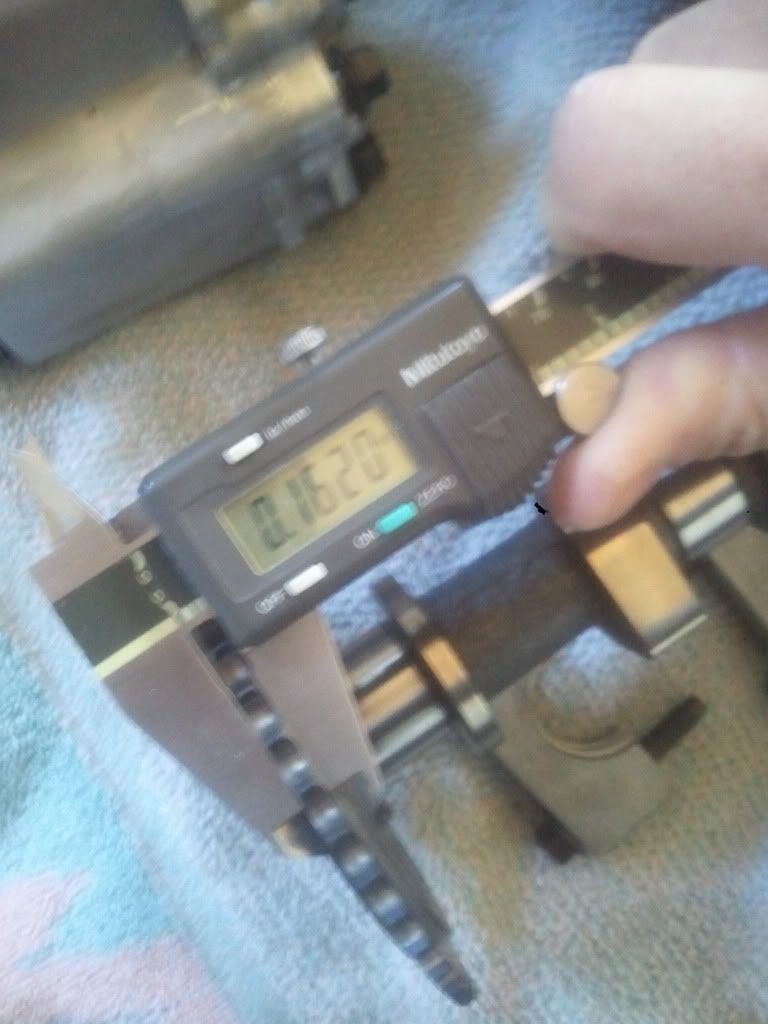

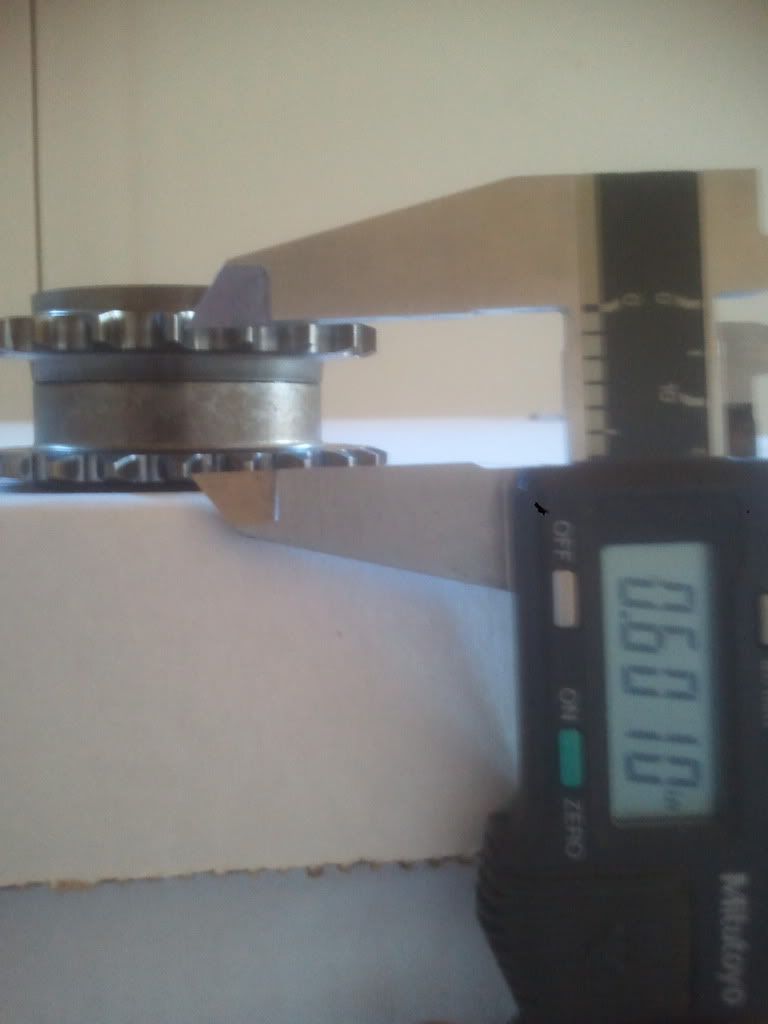

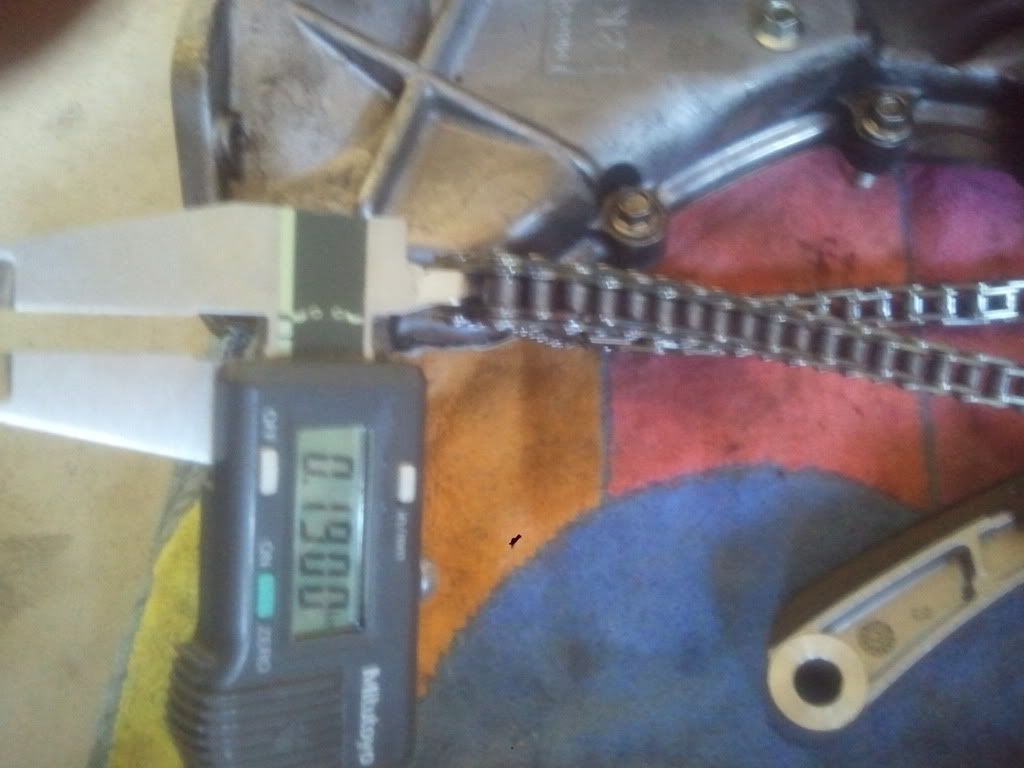

 And 0.162" (4.12mm) cam gear width:  0.19" (4.83mm) inner chain gap:  0.451" (11.46mm) outter chain (including a pin, i was rushed and just grabbed some quick measurements):  And for giggles, here's my crank sprocket I.D., 1.048" (26.63mm), and it's a 20 tooth sprocket (i think this could possibly be the oil chain sprocket, so i'll double check next time i'm over there... again i was rushed):  And since the DISI crank sprockets are 2 piece, where the duratec are 1 piece, here's our spacing, 0.601" (15.26mm):  Overall combined crank sprockets depth, 0.9315" (23.66mm), eye balled, but accurate enough IMO (also, no friction washers between sprockets for the hair splitters out there):
__________________ 500awhp 440awtq uncorrected EFR8374 ms6, no meth, 50/50 e85, and IDCs in the 90's @ 500+ awhp, with room to grow... fifth port winning. Count down to head lift.... 3.... 2.... 30r ms3 dd on deck, has fuel... needs top mount turbo lovin' next... Check out the hair Salon: www.permtuning.com | |
|
| |
| The Following User Says Thank You to djuosnteisn For This Useful Post: | socks (11-30-2011) |
|
11-30-2011, 07:21 PM
| #80 | |
| Join Date: Jan 2011 Location: vancouver,WA
Posts: 554
(View Stats)
iTrader: (0)
Rep Power: 0 Thanks: 184
Thanked 663 Times in 252 Posts
Groans: 13
Groaned at 24 Times in 5 Posts

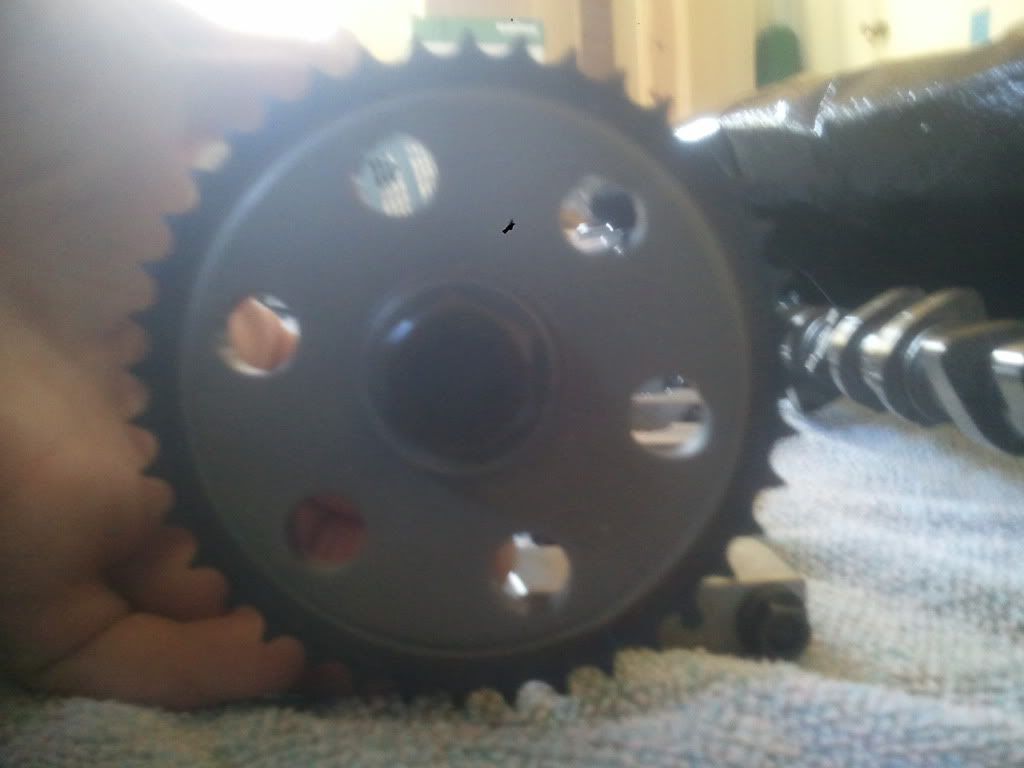

| Not Ranked : 0 score     the basic dimension are close but look at the teeth, looks to be a different profile, pitch and depth. cos=cosworth part fyi the disi cam chain teeth, assuming that I'am talking about the right ones seems to be of a lesser width, 4.83@ this one is cos: 4.93@ oil pump tooth width is cos: 2.74 overall sprocket depth is cos: .933mm versus .9315/but you didn't include the washer/spacer, so I would assume the 2 to be of the same depth inside diameter cos: 1.043 disi: 1.048 Last edited by Tabasco69; 11-30-2011 at 07:36 PM. |
|
| |
| The Following User Says Thank You to Tabasco69 For This Useful Post: | djuosnteisn (12-01-2011) |
|
LinkBacks (?)
LinkBack to this Thread: http://www.mazdaspeedforums.org/forum/f10/crank-bolt-talk-96620/ | ||||
| Posted By | For | Type | Date | |
| Turbo duratec 73 Pinto - Page 2 - Turbo Ranger Forums | This thread | Refback | 01-15-2014 06:02 AM | |
| Currently Active Users Viewing This Thread: 1 (0 members and 1 guests) | |
| Thread Tools | Search this Thread |
| Display Modes | |
| |
|
Similar Threads | ||||
| Thread | Thread Starter | Forum | Replies | Last Post |
| New CS LW Crank Pulley Review >>> | Alpha | MazdaSpeed 6 - Engine, Transmission & Driveline | 58 | 02-07-2013 04:13 PM |
| MS3 LW Crank Pulley | Alpha | CorkSport | 3 | 04-22-2011 12:07 PM |
| Corksport Crank pulley? | Mazdanspeed3 | MazdaSpeed 3 - Engine, Transmission & Driveline | 12 | 02-23-2011 11:14 PM |
| Mazda3 Crank vs Speed3 Crank | relenger | MazdaSpeed 3 - Engine, Transmission & Driveline | 36 | 12-19-2010 08:22 AM |
1Likes
Linear Mode
